For Critical Infrastructure Protection
ASAP V™ for Critical Infrastructure Protection is a modular, multi-sensor surveillance system designed for subways and other high-value/high-risk areas. Sensor modules are available that can detect a wide range of threats, from the presence of nuclear, biological and chemical agents, to smoke and fire.
ASAP V/CIP systems may be configured to uniquely match your particular concerns and budget. A nodal approach is used that allows local or remote monitoring of a single suite of detectors or the monitoring of a number of nodes in different locations. Information from the individual nodes can flow to a central PC-based monitoring system via secure optical fiber, cell phone, Internet, Bluetooth, or other appropriate data linking technology. CBRN International can supply the following monitoring capabilities: NBC threats, explosives, smoke and fire, video and sound, intrusion, thermal imaging and meterological data.
Protects high value/high risk areas
Urban infrastructures worldwide are coming under increasing threat from criminals and terrorists. ASAP V offers comprehensive detection of a wide range of threats.
Custom designed for your requirements
Every situation is different, and every ASAP V system is individually tailored to meet the client's specific detection requirements and budget constraints.
Connectivity and Communication
Information from each node can be viewed locally, or transferred to a remote PC-based monitoring station via secure optical fiber, cell phone, internet, Bluetooth,etc.
- Chemical, biological, and nuclear threat detection
- Explosives detection
- Smoke and fire detection
- Video and sound monitoring
- Intrusion detection
- Thermal imaging
- Meteorological data
- X-ray detection
- Large area air circulation and sampling methods
- Biological and radiological sample collection and storage
- Transit systems/subways
- Critical infrastructure protection
- Homeland security
- Air quality
|Use profile||Automated/programmed/continuous identification of targeted toxins, viruses, bacteria, spores, industrial chemicals, explosives, and nuclear materials. Batch sample examination also supported.|
|Duty cycle||Continuous. Functional availability >99.3% (1).|
|Air sampling rate||30,000 liters/min.|
|Toxic Industrial Chemicals Subsystem||Ion mobility spectrometry or long baseline infrared spectrometry. Gas libraries of 15 to 40 targets, depending on technology used. Analysis time less than 10 seconds.|
|Explosives Subsystem||Ion mobility spectrometer; analysis time = 8 seconds.|
|Nuclear materials Subsystem||Area and portal styles available. Typical specifications: 0.05 to 3.0 MeV gamma detection window. Detect 360 kBq of Cs-137 and 6 gm Pu(2); neutron detection optional.|
|Video Subsystem||Up to1280 x 720 (HDTV) resolution + sound|
|Thermal Video Subsystem||Up to 640 x 480 (VGA) + sound|
|Sensitivity||40 gauge wire typical, 38 guaranteed|
|Penetration||39 mm steel typical, 37 mm guaranteed|
|Contrast Sensitivity||24 visible levels, 4096 gray levels|
|Bioidentification - Manual||Immunoassay test strips and machine reader: 12 minutes typical overall time|
|Bioidentification-Automated||Four simultaneous assays performed on 1 cc samples using a credit card-size assay coupon. Coupon and associated re-useable reagents provide from 20 to 30 assays over a 48 hour use period. 15 to 30 minute combined collection and identification period|
|User Interface||Windows® user interface.|

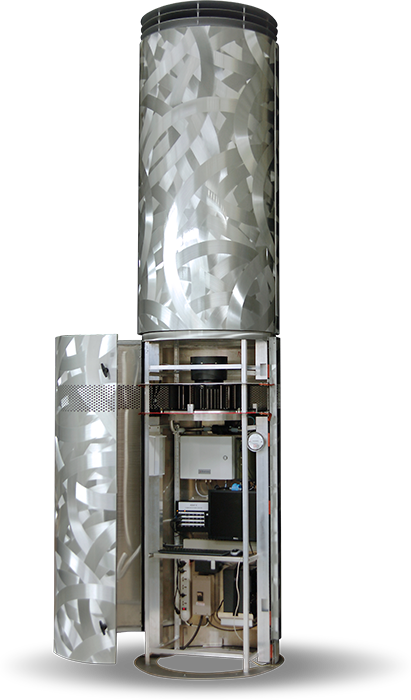

|Physical Size||Depends on user requirements. Architectural column-style design is typically 0.9 meters diameter x 3 to 4 meters high.|
|Temperature range||Operating: For systems that do not support liquid-based bioassays, -20° to 60°C; for liquid based bioassay systems, above freezing to 50°C.|
|Alarms||Large green/amber status light; annunciator optional.|
RS-232 bi-directional serial link is standard.
|Data storage/programmability||Raw/processed data storage at each monitoring node. Operating protocols are reprogrammable through an external communications link.|
|Power Consumption||750 watts typical with 30,000 LPM air circulation system installed.|
|Humidity||5% to 95%, non-condensing.|
(1) Functional availability is the percentage of total work time the system is functional, averaged over a 90 calendar day period.
(2) Search volume: 0.7m diameter X 2m length. Object speed 5 Km/hr. Detection probability 50% at 95% confidence level, 0.17
false alarm rate, 20 ur/hr. background.
CBRN International, Inc. reserves the right to change specifications or product source without prior notice.
